2016mm無源貼片晶振Q22FA1280013200專屬于汽車氛圍燈控制器，在這個變化莫測的世界之中，唯有掌握核心技術才是基本，隨著市場對于5G技術有了更高更嚴的要求，而5G最主要的當屬芯片，與芯片工作密不可分的電子元器件之一就是它的左鄰右舍---晶振。石英晶振的作用是提供精準信號源與之配合，以協作模式實現設備之間借由網絡渠道達到數據高速傳輸（交換）的目的。

Product Number	愛普生晶振	Model	Frequency	CL Value	Freq.tol. @+25°C
Q22FA1280010800	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-30 ppm
Q22FA1280011200	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-15 ppm
Q22FA1280011400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	9 pF	+/-10 ppm
Q22FA1280011600	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-15 ppm
Q22FA1280011900	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-20 ppm
Q22FA1280012000	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm
Q22FA1280012100	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	15 pF	+/-10 ppm
Q22FA1280012500	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-30 ppm
Q22FA1280012600	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	8 pF	+/-30 ppm
Q22FA1280012700	2 x 1.6 x 0.5mm	FA-128	24.576000 MHz	10 pF	+/-30 ppm
Q22FA1280012900	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	12 pF	+/-30 ppm
Q22FA1280013100	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-10 ppm
Q22FA1280013200	2 x 1.6 x 0.5mm	FA-128晶振	26.000000 MHz	15 pF	+/-10 ppm
Q22FA1280013500	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-10 ppm
Q22FA1280013700	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-20 ppm
Q22FA1280014000	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	+/-10 ppm
Q22FA1280014100	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	10 pF	+/-10 ppm
Q22FA1280014300	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	6 pF	+/-50 ppm
Q22FA1280014500	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-10 ppm
Q22FA1280014600	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-10 ppm

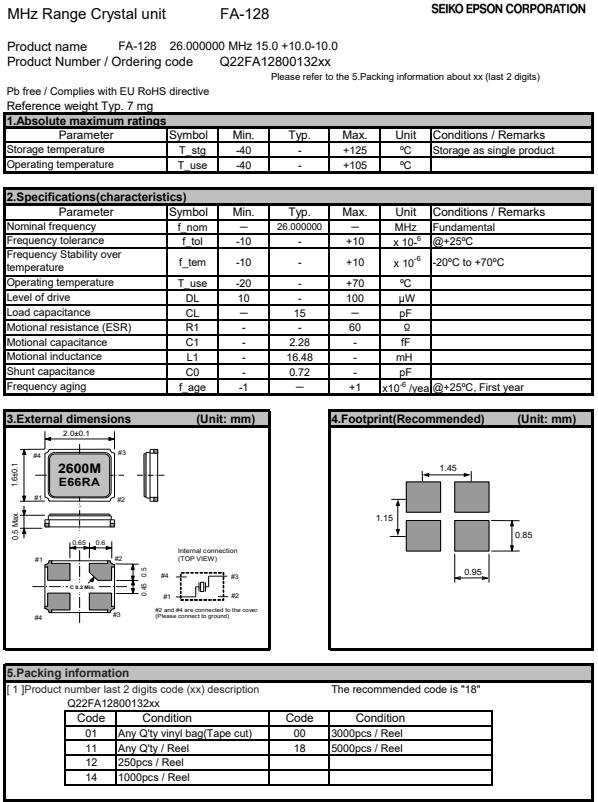

愛普生公司憑著自身獨特優勢，開發出了FA-128晶振，貼片晶振編碼Q22FA1280013200，編碼26.000000兆赫，尺寸(LxWxH)2 × 1.6 × 0.5 mm，客戶負載電容15pf，頻率公差+ / -10 ppm，F(xiàn)o / temp。特征公差+ / -10 ppm，溫度范圍-20至+70°C，具有低損耗，高性能的特點，十分適合用于汽車氛圍燈控制器，無人機，智能水表，醫療產品，智能家居等領域。
